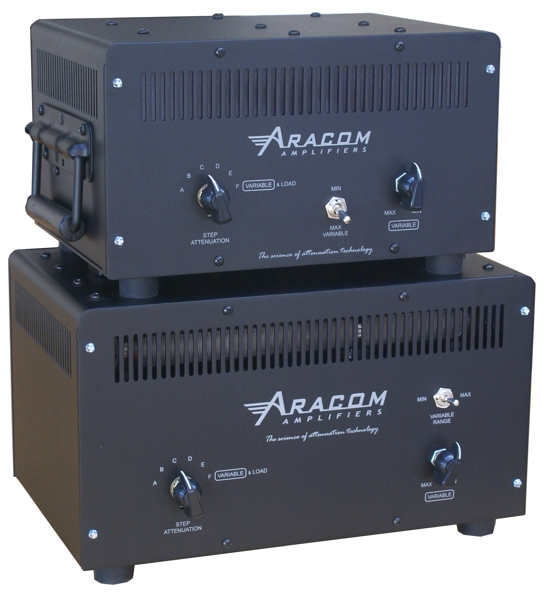

PRX150-Pro and PRX150-DAG Front    PRX150-Pro and PRX150-DAG Front


Two models of the Power Rox PRX150 power attenuator are available:

                    The PRX150-Pro2 and the PRX150-DAG





PRX150-Pro2

PRX150-DAG

Dimensions





11"w x 6.0"h x 8"d

(27.9cm x 15.2 x 20.3)
6.5 (16.5cm) tall with feet

11"w x 6.0"h x 8"d

(27.9cm x 15.2 x 20.3)
6.5 (16.5cm) tall with feet

"Speaker Reactance Thru" Attenuation Technology


Dual Mode Variable Attenuation Switch


Impedance Matching
Feature
Amplifier to Speaker Cabinet



Input: 4,8,16 ohm
Output: 4,8,16 ohm
9 In/Out Combinations

Input: 2,4,8,16 ohm
Output: 2,4,8,16 ohm
16 In/Out Combinations

40dB of overall attenuation


150 watt power rating


Dynamic High Frequency Cut Switch


Line Out with an EQ'ed Line Out Signal


Line Out with Switching Potentiometer (Push/Pull) - switches between the raw Non-EQ'ed Line Out Signal and an EQ'ed Line Out Signal


19� Rack Shelf Option


Price


$775

$875





* Prices do not include shippng charges. International shipping charges do not include Customs fees, import duties, tariffs, or VAT.



** LATEST FEATURES **

PRX150-DAG Model: Line Out Switching Potentiometer "Push/Pull Pot (Level Control Knob)"


Switches between the raw Direct Output signal and an Equalized Line Out signal:
Potentiometer Knob Pushed In = Equalized Line Out signal that emulates the natural high frequency roll off of a guitar speaker.

Potentiometer Knob Pulled Out = Non-equalized Line Out, the raw sampled "non-equalized" signal from the amplifier.

PRX150-Pro2 and PRX150-DAG Models: Rear Metal Bumpers

Added protection for the switches and knobs on the back panel.



THE PRX150 ADVANTAGES:

Proprietary, patent pending Speaker Reactance Thru (S.R.T.) attenuation technology:


Unlike other attenuators, the S.R.T technology does not load down the speakers reactance, which allows your speakers to react and perform naturally throughout the attenuation range. The PRX150 with its S.R.T. technology provides highly transparent tone.

Click Here for nearly 100 customer provided audio/video clips and hear for yourself.


Independent Input and Output impedance selector switches:
* Amplifier to Speaker Cabinet Impedance Matching Feature (Patent Pending)


PRX150-Pro2:
- from the amplifier and into the attenuator, select from: 4, 8, 16 ohm
- from the attenuator and to the speaker cabinet(s), select from: 4, 8, 16 ohm
Uniquely allows 9 possible Input and Output (Amplifier to Speaker Cabinet) impedance combinations.

PRX150-DAG:
- from the amplifier and into the attenuator, select from: 2, 4, 8, 16 ohm
- from the attenuator and to the speaker cabinet(s), select from: 2, 4, 8, 16 ohm
Uniquely allows 16 possible Input and Output (Amplifier to Speaker Cabinet) impedance combinations.

* No other attenuator offers our separate, selectable Input and Output impedance design.

* No other attenuator offers the PRX150's Amplifier to Speaker Cabinet Impedance Matching Feature (patent pending).


150 watt power rating:

The PRX150 line of attenuators can truly handle the power of your "monster" 100 watt (quad power tube) amplifier that is actually putting out much more than 100 watts when cranked up. Unlike other power attenuators that "overheat" with a cranked up 100 watt amp.


Dual Range Variable Attenuation Mode:

Also exclusive to the PRX150 line of attenuators is the Min/Max Toggle switch, that allows the user to select between two Variable Attenuation ranges, providing very fine and precise control of the variable attenuation.



There are hundreds of happy PRX150 attenuator customers throughout the world. The PRX150 is used by professional, semi-pro, studio and hobby guitarist in more than 25 countries.

Click Here to read what guitar magazines and 100 customers have to say about their PRX150 attenuator.

Click Here for approximately 150 PRX150 audio/video clips.





For detailed information on the PRX150-Pro2 - PRX150-DAG and ordering information, click on the following links to go directly to their product page:

    PRX150-Pro2

    PRX150-DAG



Premier Guitar Magazine
   "Sonically, the Aracom PRX 150-Pro attenuator stayed very true to every amp I paired it with. My tone stayed stable as I lowered the dB level to its minimum amount (the variable control doesn�t turn the sound completely off). Even super-quiet bedroom settings sounded very good and responded to picking and touch extremely well. This attractive, sturdily built unit would be a great addition to any guitarist�s tone arsenal."


M Music & Musicians Magazine
   "MAXIMUM TONE AT A MINIMAL VOLUME - For preserving your neighbors� sanity. Like a fine sports car, some amps need to be opened up before they hit their stride�but the volume makes this an ongoing challenge for amp lovers and soundmen alike. The PRX took the loudest non-master volume amp we could find down to conversation level with none of the tonal compromises we�ve noticed in the other units."


Guitar Player Magazine
  "... the PRX150-Pro�s Speaker Reactance Thru (SRT) technology helped deliver a satisfyingly balanced tone at reduced volume levels...




ARACOM's PRX150-DAG on tour with lead guitarist Jimmy Herman (Carrie Underwood)


Jimmy Herman is using his PRX150-DAG attenuator along with his Marshall plexi and Hiwatt 100 amplifiers live, on Carrie Underwood's 2013 Blown Away tour.









A sample of over 150 PRX150 audio/video clips:

George Alayon's - "Hellicrash"

1964 Fender Strat -> Metro Plexi Amp -> PRX150-DAG -> Marshall 4x12 loaded with H-75 Scumback speakers.

      Hellicrash mp3 audio clip (1.9M bytes)

      Hellicrash Jam_01 wav audio clip (14M bytes)


George Alayon's - "Disturbed"
Marshall and Friedman Marsha Amps -> PRX150-DAG -> Marshall 4x12 loaded with H-75 Scumback speakers.

      Disturbed Jam_01 mp3 audio clip (5k bytes)

      Disturbed Jam_01 wav audio clip (33M bytes)




Lance Keltner's PRX150-DAG Demo with the 3 Monkeys-Grease Monkey Amp





  Manny Swan discussing and demonstrating the ARACOM PRX150-DAG power attenuator (PART 1 of 2)
Equipment used: Fender Reissue Strat, 1971 Marshall SuperLead 100 watt (Model: 1959) amp, 1966 Fender Deluxe Reverb amp, Marshall 4x12 cabinet equipped with Celestion G12H Heritage 30 watt speakers (55Hz) cones. Guitar directly into amp, no effects. (audio straight from camcorder)





  Manny Swan discussing and demonstrating the ARACOM PRX150-DAG power attenuator (PART 2 of 2)
Equipment used: Fender Reissue Strat, Sebago Double Trouble (Dumble Overdrive Special inspired) amp, Marshall 4x12 cabinet equipped with Celestion G12H Heritage 30 watt speakers (55Hz) cones. Guitar directly into amp, no effects. (audio straight from camcorder)





Lance Keltner's PRX150-DAG Demo with the Metropoulos 12,000 Series Amp
(1969 Marshall 100 watt Superlead replica)+ a Gene Baker b3 guitar






  Filippo F. Olivieri (Italy) PRX150-DAG "AC/DC" Demo. Attenuation level "F" (Variable Attenuation mode) providing approximately 20dB of attenuation, reducing his Marshall JMP(Plexi 50) amp's power out to less than 1 watt.





  Filippo F. Olivieri (Italy) PRX150-DAG "Boston (Party) Demo" Demo. Attenuation level "F" (Variable Attenuation mode) providing approximately 20dB of attenuation, reducing his Marshall JMP(Plexi 50) amp's power out to less than 1 watt.







  Doug Doppler's "Get Killer Tone" DVD series. An original Dumble Steel String Singer with the PRX150-Pro.





 Christophe Carpentier (France)- Van Weelden "Marshall Superlead" 100w Amp, PRX150-DAG attenuator (heavy attenuation - bedroom level)








  Gene Baker "Mean Gene Band (MGB)" Live, Baker b3 Guitar, ARACOM Evolver 50 amp "dry side", ARACOM VRX22 amp "wet side", PRX150-DAG attenuator





YouTube find: Nik Huber Dolphin guitar, cranked up vintage Marshall amp, PRX150-Pro2 (heavy attenuation), 4x12 cab. Thanks to Spiraless, a jazz-fusion instrumental rock band from France.





YouTube find: 1959 Les Paul Reissue, 1974 Marshall SuperBass,PRX150-DAG, Marshall Model 1912 cabinet with Celestion G12M-65 Creamback speakers. Thanks to Marcello Prati.





Click Here for approximately 150 PRX150 audio/video clips.





July 2010 - Premier Guitar Magazine's PRX150 Attenuator Review

"If you have an amp that sounds great when you crank it up but it�s just too loud for most playing situations, you�ll want to know about the new Aracom Power Rox PRX 150-Pro amp attenuator. Designed for use with tube amps, this unit lets you reduce the level of a fully cranked head or combo."



Click here for the complete Premier Guitar Magazine Review









* Pricing and specifications subject to change without notice.

Power Rox PRX150-Pro2 and PRX150-DAG are trademarks of ARACOM Amplifiers.
